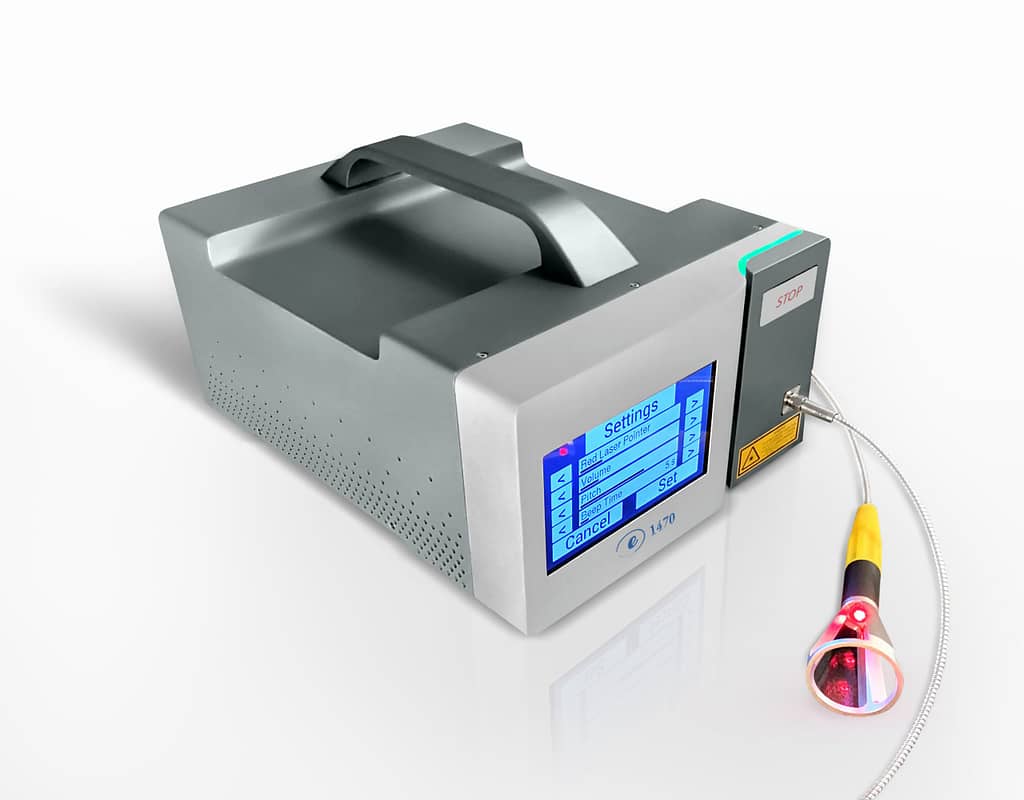

Eclipse® 1470
Treat varicose veins with the precision and consistency.
Endovenous Laser Ablation is a well established procedure for treatment and management of varicose veins from chronic venous disease. Eclipse® 1470 sets new standard for EVLT equipment.
- Operates at the wavelength of 1470nm, which corresponds to the peak of water absorption. This allows to maximize thermal damage to the wall of varicose vein while minimizing damage to adjacent tissues.
- Unmatched stability of power output and laser beam quality.
- Does not require a proprietary fiber. Works with any fiber with SMA-905 connector
- Intuitive user interface that allows to adjust treatment parameters in-situ using a wide viewing angle high-resolution touchscreen.
- Robust and compact
Technical Specifications
Model
Eclipse® 1470
Wavelength
Power
Operating mode
Pulse duration
Repetition rate
Dimensions
Weight
1470nm
15W
Continuous, Pulsed
1ms – continuous
Up to 5kHz
220mm x 128mm x 250mm
6.5 kg
